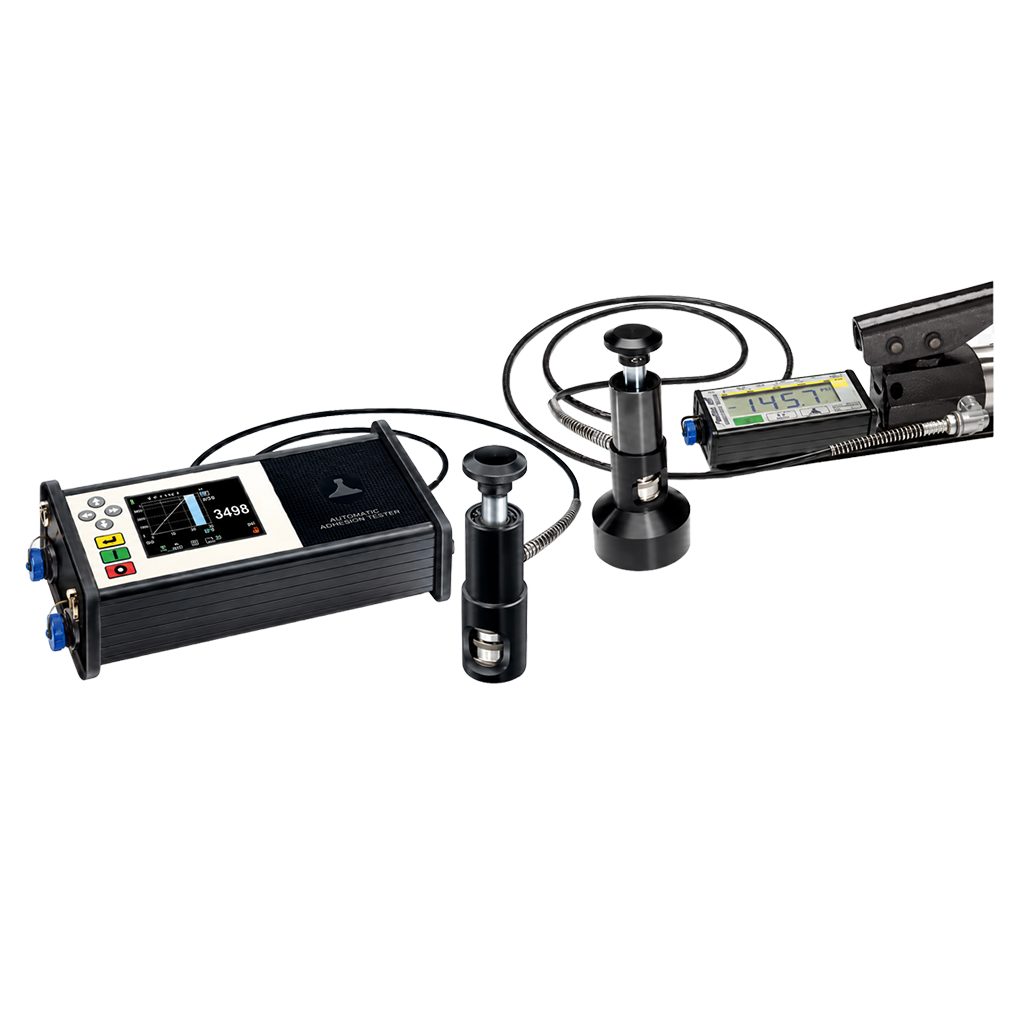

BOND STRENGTH/PULL OFF TEST DIGITAL

Bond Strength Pull off tester is used to Measure the adhesion of coatings to metal, wood, concrete. It measures the force required to pull a specified test diameter of coating away from its substrate using hydraulic pressure. The pressure is displayed on a precision digital indicator and can be related to the strength of adhesion to the substrate. There are 2 models available Manual Hydraulic pump with Digital Read-out, Automatic Electronically controlled Hydraulic pump with Digital Read-out The Bond Strenght Pull off tester comes complete with all accessories.

• Typical Application (50 mm Kit): Lower bond strength coatings on wood, concrete, and plastic • Typical Application (50 × 50 mm Tile Kit – BS EN 12004-2): Cementitious adhesive for tiles • Typical Application (50 mm C1533 Kit – ASTM C1583): Concrete surfaces and overlays • Manual Model Range (50 mm Kit): 0.4–3.3 MPa (50–480 psi) • Manual Model Range (50 × 50 mm Tile Kit): 0.4–2.585 MPa (50–375 psi) • Manual Model Range (50 mm C1533 Kit): 0.4–3.3 MPa (50–480 psi) • Automatic Model Range (50 mm Kit): 0.4–3.8 MPa (50–560 psi, 100–7550 N) • Automatic Model Range (50 × 50 mm Tile Kit): 0.4–3.033 MPa (50–440 psi, 100–7550 N) • Automatic Model Range (50 mm C1533 Kit): 0.4–3.8 MPa (50–560 psi, 100–7550 N) • Included Dollies (50 mm Kit): Ø50 mm, quantity 8 • Included Dollies (50 × 50 mm Tile Kit): Aluminum 50 × 50 mm plate, quantity 4, with threaded post • Included Dollies (50 mm C1533 Kit): Steel Ø50 mm, quantity 4, thickness >25 mm • Cutting Tool (50 mm Kit): 50 mm hole saw • Cutting Tool (50 × 50 mm Tile Kit): Not required • Cutting Tool (50 mm C1533 Kit): 50 mm diamond grit hole saw with arbor • Adhesive Resin (All Kits): ResinLab EP11HT 2-Part Epoxy • Protective Case: Included with manual and automatic models

• CN 0113: Adhesion Tester Manual Model – 50 mm Kit • CN 0114: Adhesion Tester Automatic Model – 50 mm Kit • CN 0115: Adhesion Tester Manual Model – 50 × 50 mm (BS EN 12004-2) Tile Kit • CN 0116: Adhesion Tester Automatic Model – 50 × 50 mm (BS EN 12004-2) Tile Kit • CN 0117: Adhesion Tester Manual Model – 50 mm C1533 Kit • CN 0118: Adhesion Tester Automatic Model – 50 mm C1533 Kit
